Compact Air Meter

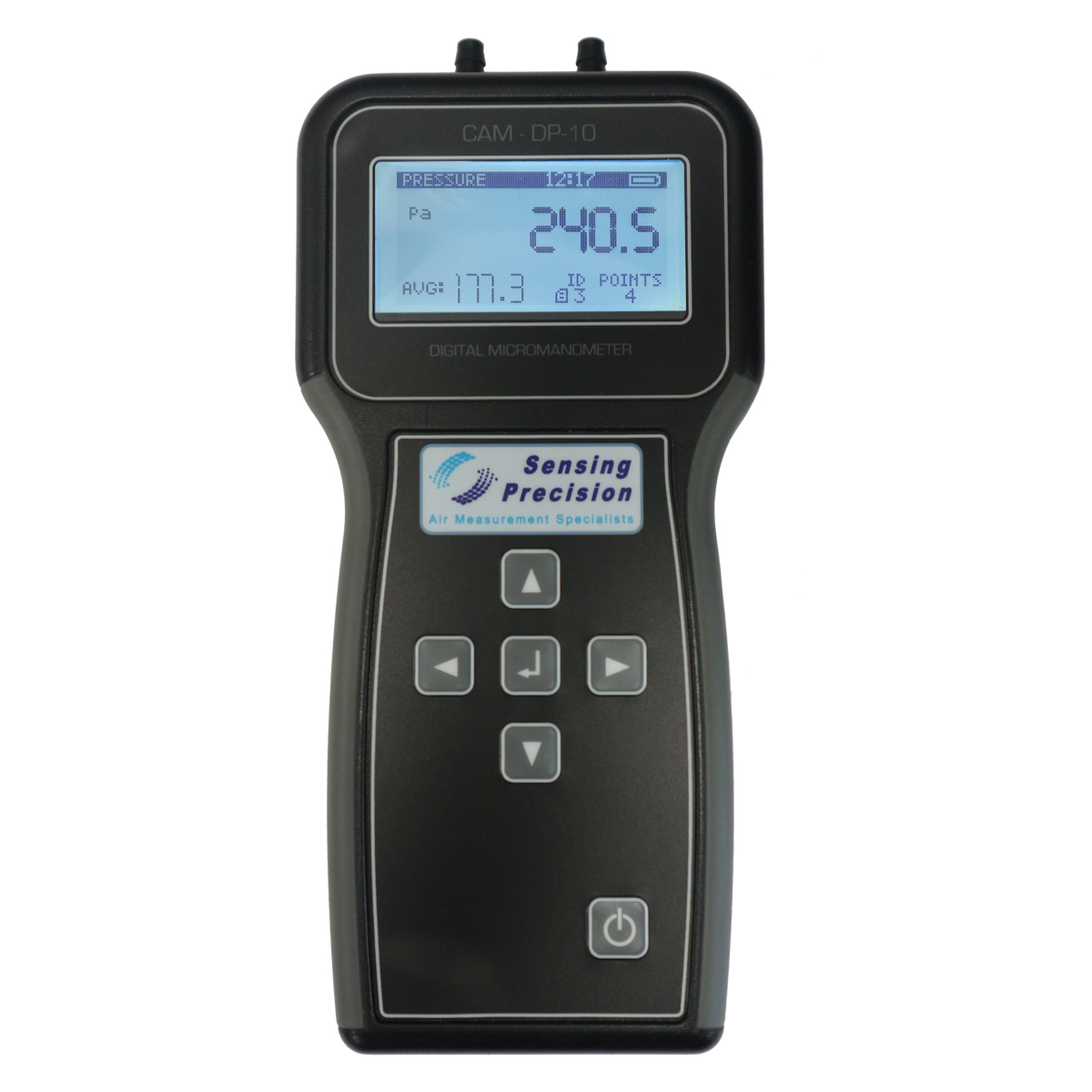

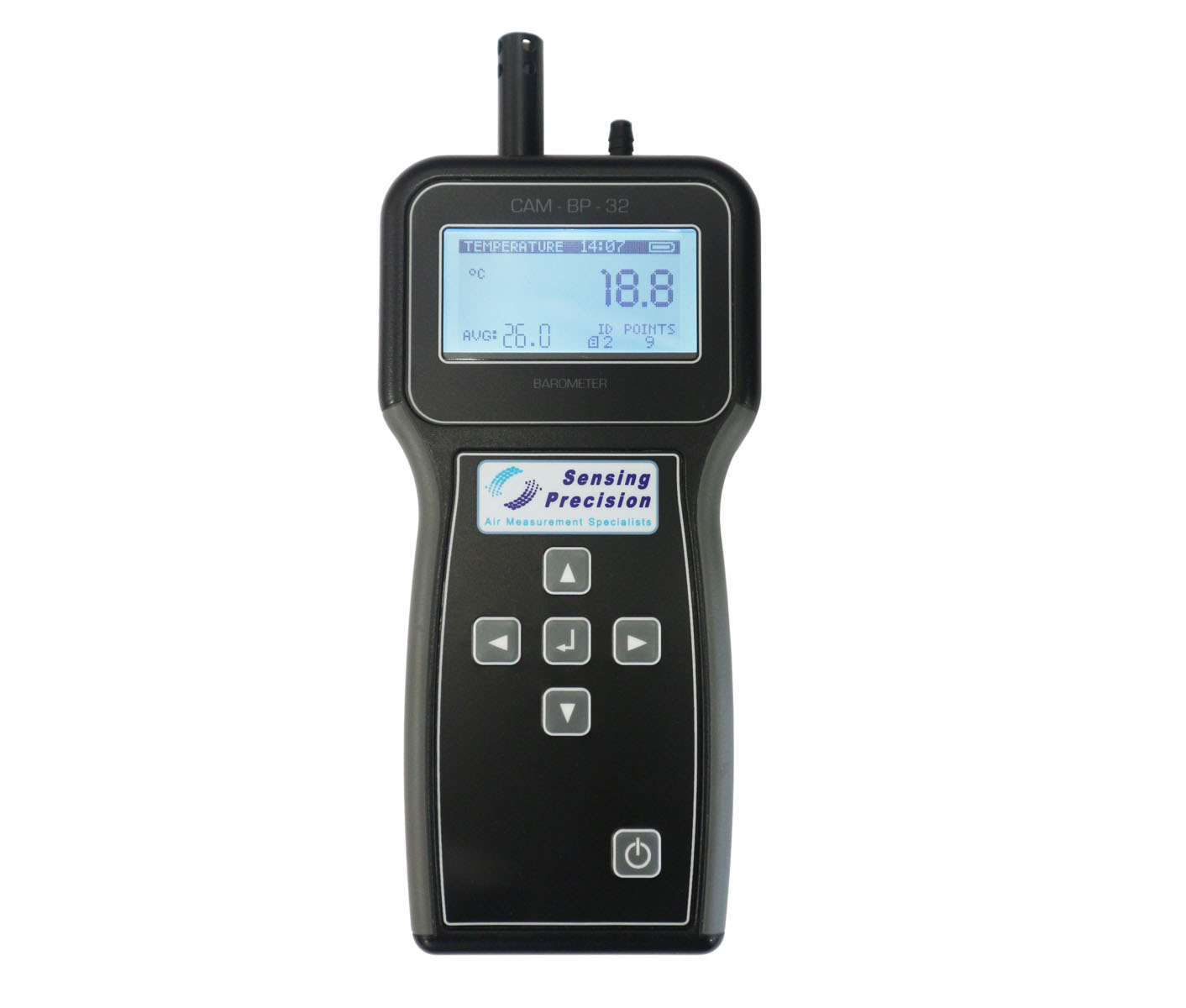

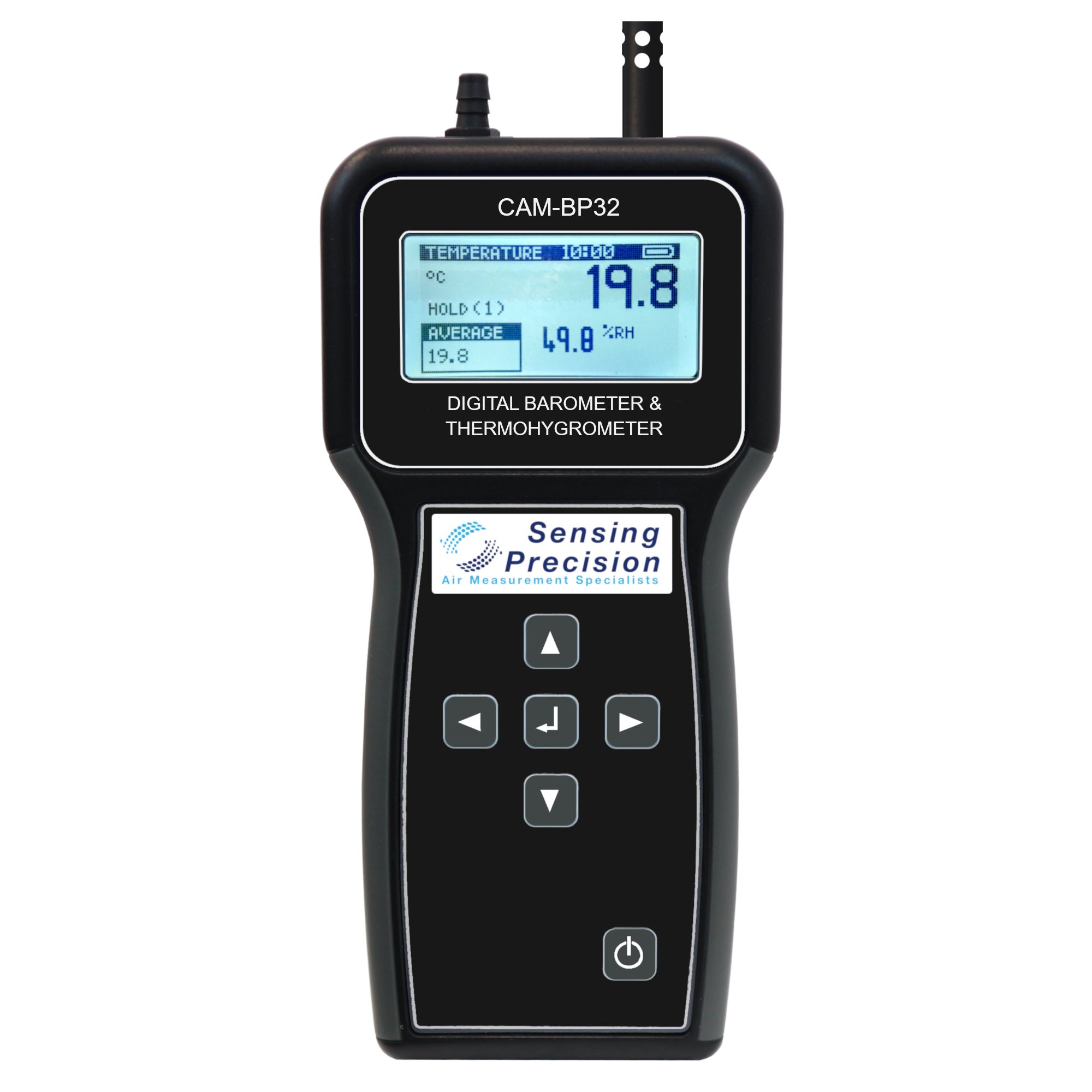

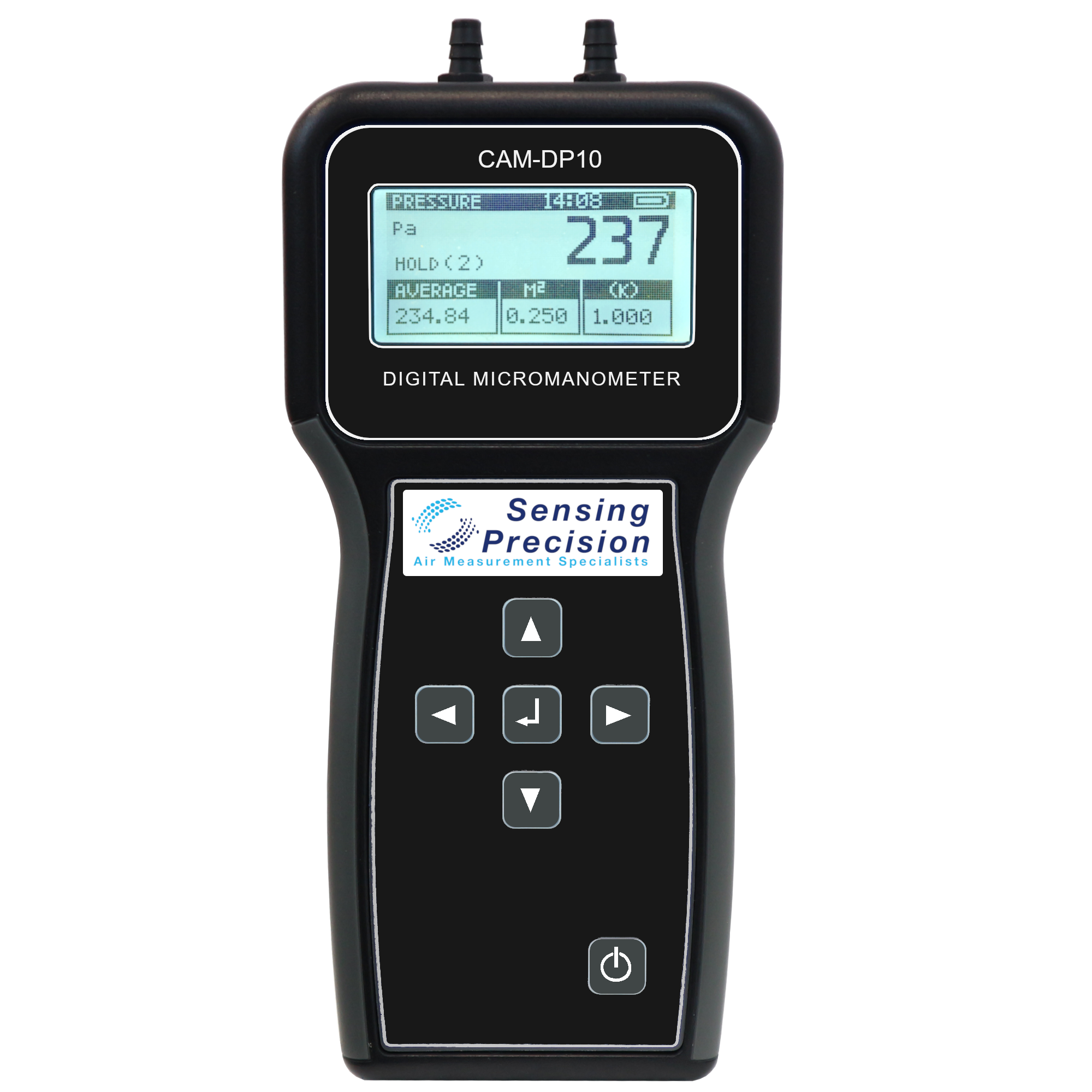

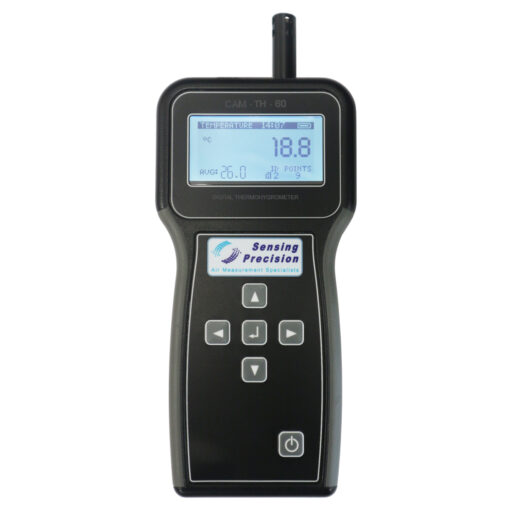

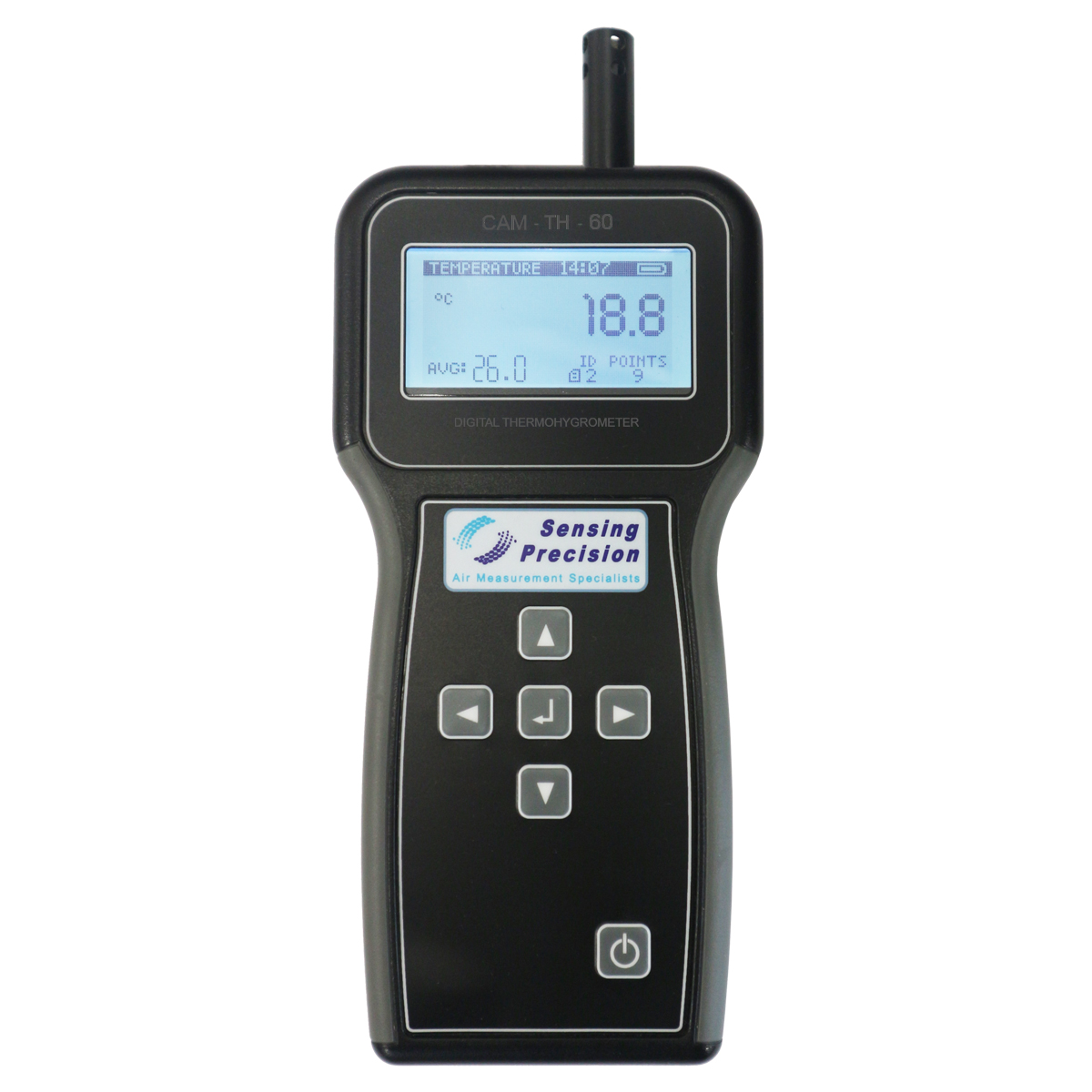

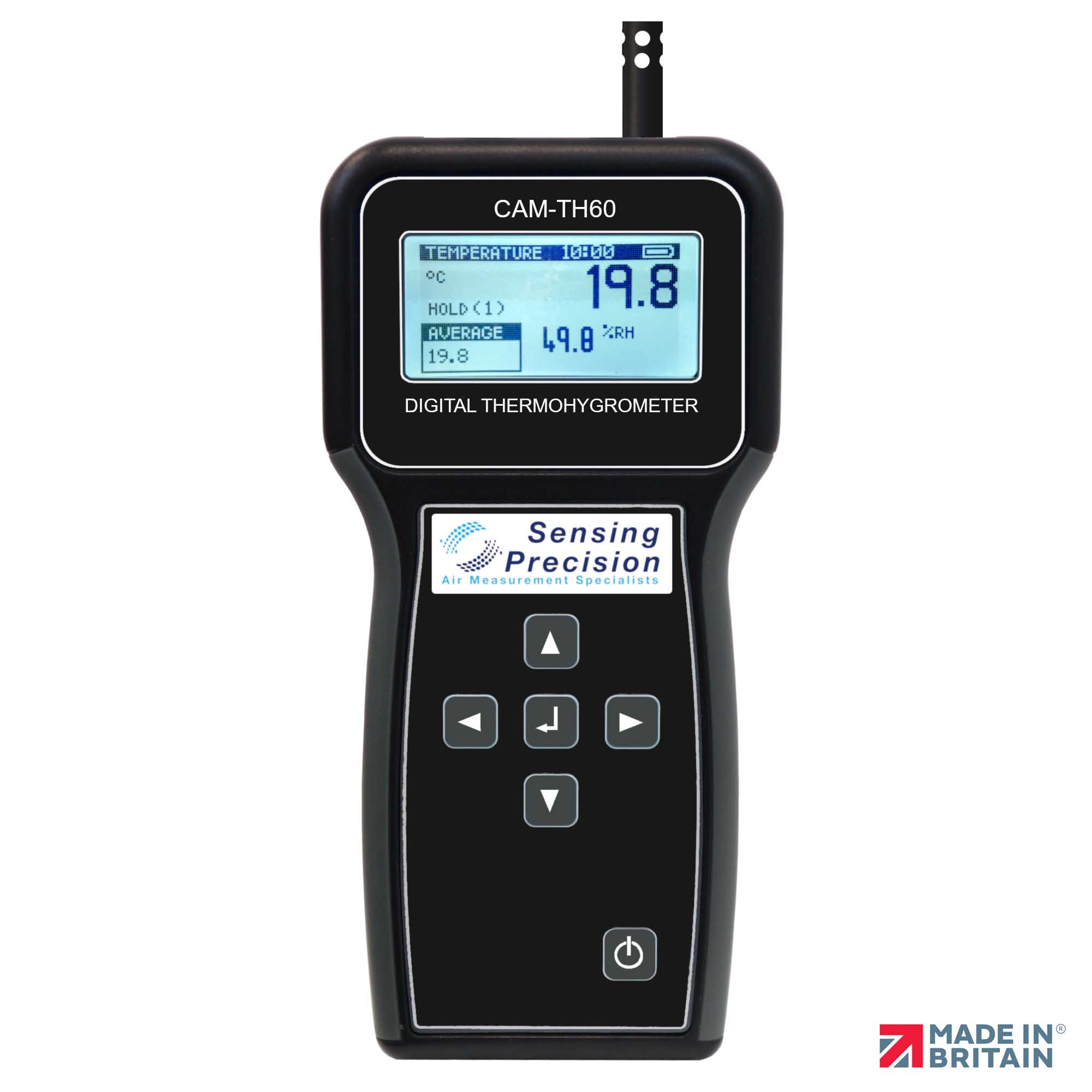

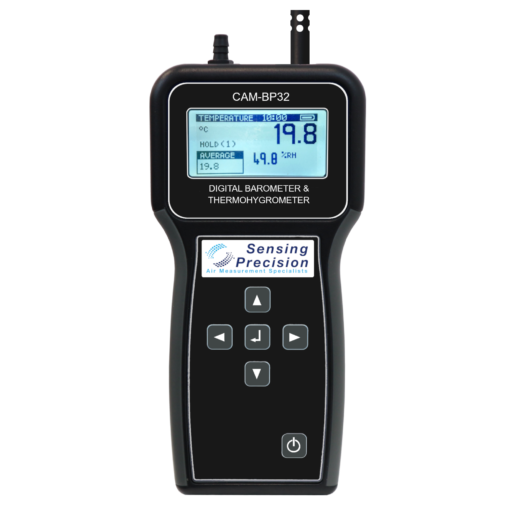

The Compact Air Meter range from Sensing Precision Limited includes four standalone handheld instruments. Two differential pressure instruments, the DP02 (0-±500Pa) and the DP10 (0-±2500Pa), and two ambient conditions instruments, the BP32 (Barometer, Temperature and Humidity) and the TH60 (Temperature & Humidity). Each of our Compact Air Meter instruments is supplied with UKAS traceable calibration and a clam shell protective case. The DP02 and DP10 also have the option of upgrading to a larger hard plastic carry case which includes a 300mm x 8mm Pitot Tube manufactured by Sensing Precision Ltd.
The Compact Air Meter (CAM) range from Sensing Precision Limited includes four standalone handheld instruments. Two differential pressure instruments, the DP02 (0-±500Pa) and the DP10 (0-±2500Pa), and two ambient conditions instruments, the BP32 (Barometer, Temperature and Humidity) and the TH60 (Temperature & Humidity). Each of our Compact Air Meter instruments is supplied with UKAS traceable calibration and a complimentary clam shell protective case.
The CAM range of instruments utilise ultra high accuracy sensors and can operate on a single 9V PP3 battery for over 50 hours or can be powered directly from the USB port. Each instrument is equipped with a memory chip for high volume data logging and data logs can be read direct to the LCD and output via the USB with the use of serial terminal program such Putty.

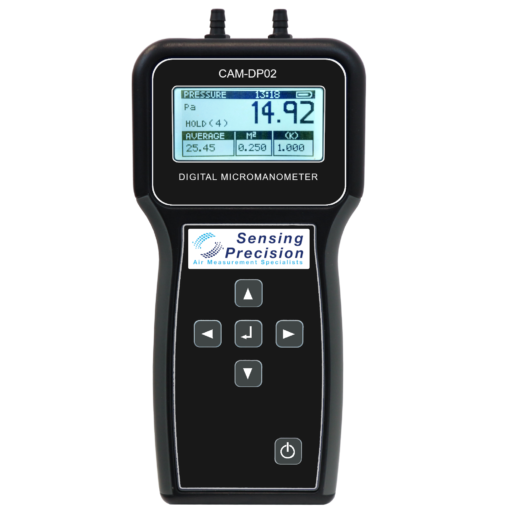

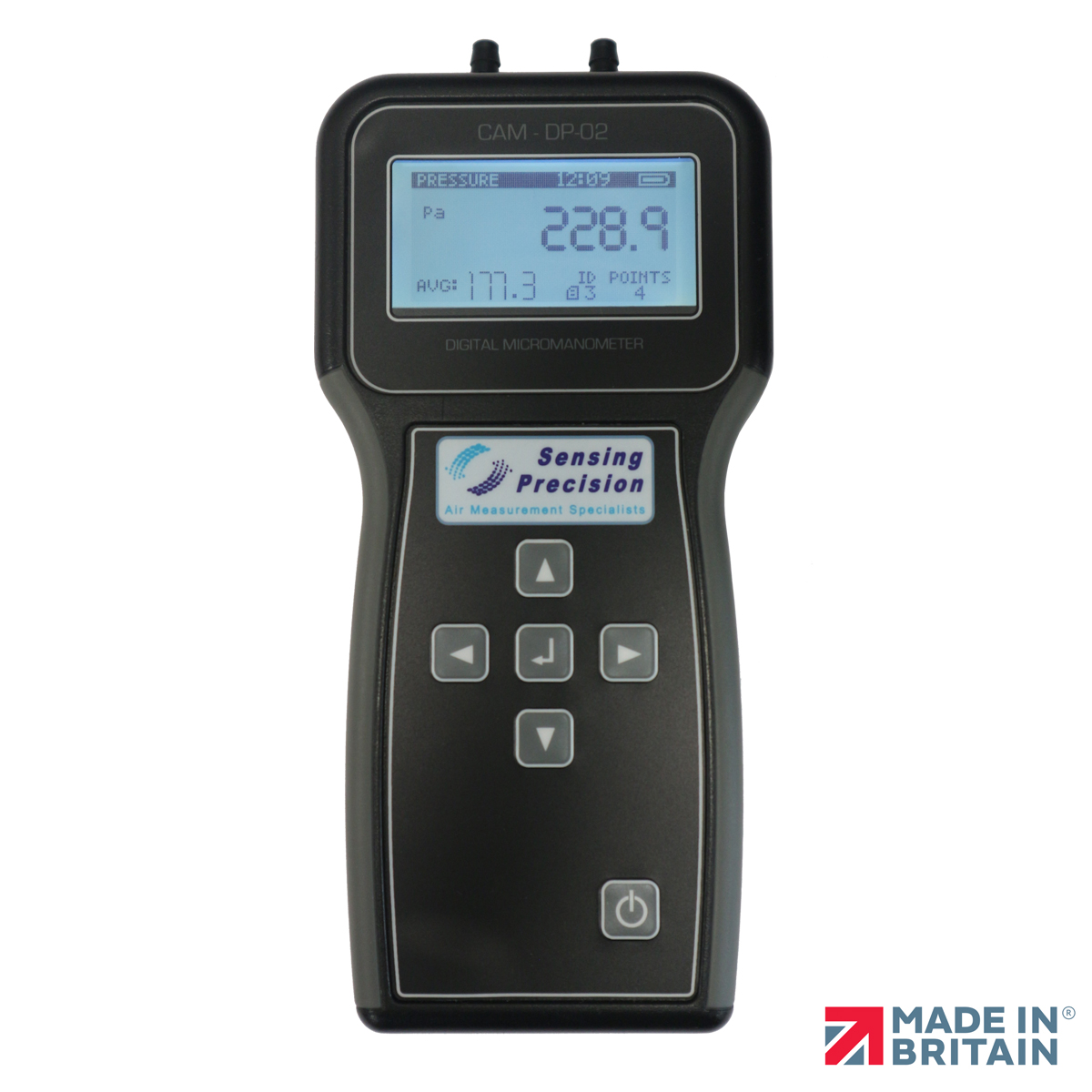

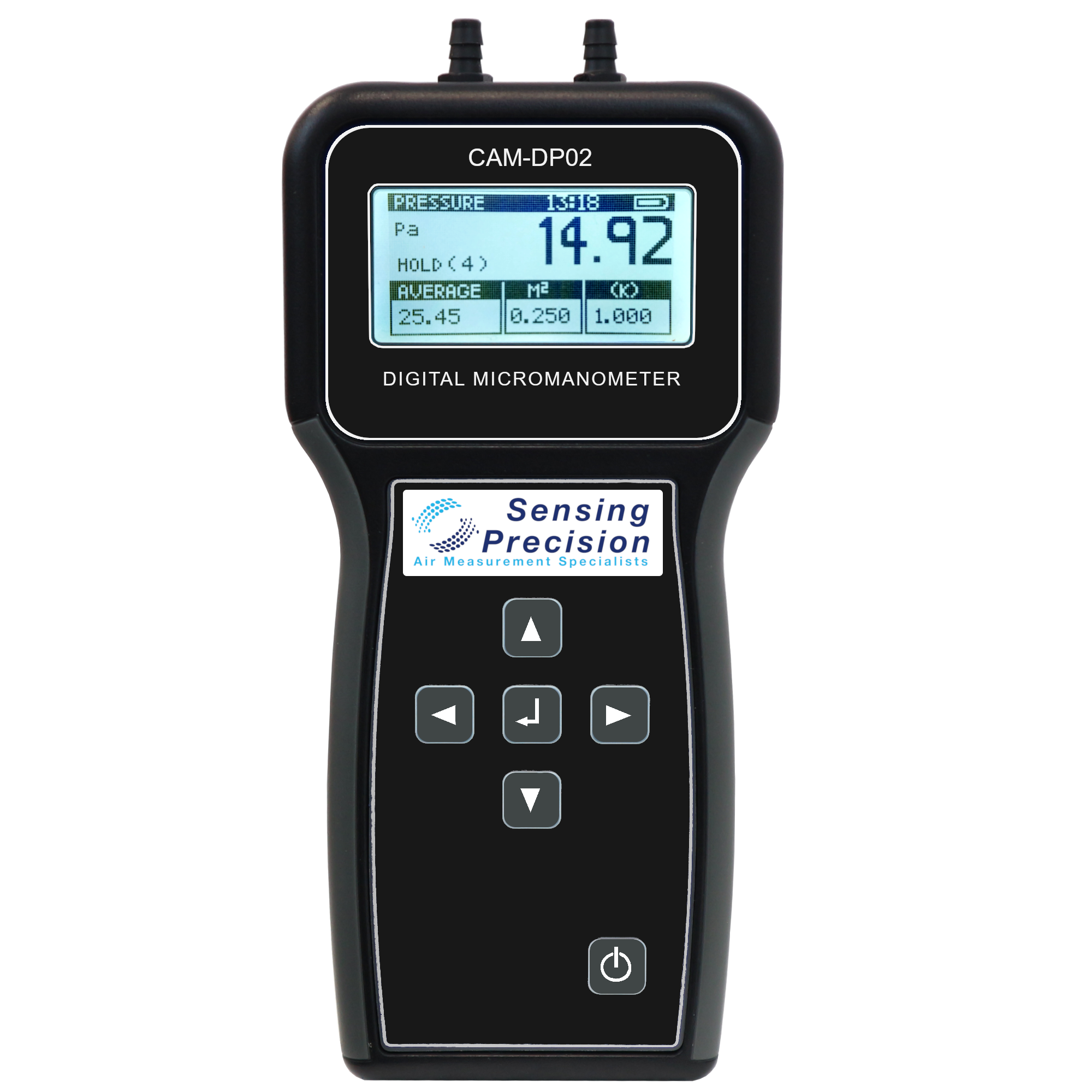

On the DP02 and DP10 instruments, the large LCD displays primary measurement as well as duct area and correction factor. On the BP32 and TH60 instrument, the LCD displays the primary measurement and a secondary measurement. Each instrument also shows the average for the primary measurement and the current log count.
Key Features of the CAM Range
BP32 & TH60
– Measure barometer (BP32 Only)
– Measure temperature
– Measure humidity
– Calculate dew point
DP02 & DP10
– Measure differential pressure
– Calculate velocity
– Calculate volume flow
– Enter K-Factor (multiplication factor)
– Enter duct area
– Enter ambient temperature and barometric pressure
– Adjustable sensor damping (1 to 32 second averaging)
DP02, DP10, TH60 & BP32
– Adjustable screen brightness
– On board real time clock with calendar
– Over 50 Hours of battery life from a standard 9V battery.
– Battery level indicator
– Built in battery saver option
– USB connectivity & power from USB
– Durable enclosure with soft grip sides.
| DP02 / DP10 | ||
| Pressure Range – DP02 | ± 500 Pa | ± 2inwg | Pressure Range – DP10 | ± 2500 Pa | ± 10inwg |
| Accuracy – DP02 | 0.5% of Reading (±1 digit) | |
| Accuracy – DP10 | 1% of Reading (±1 digit) | |
| Resolution – DP02 | 0.01 Pa (upto 300Pa), 1Pa (above 300Pa) | |
| Resolution – DP10 | 1 Pa | |
| Sensor Damping | 0.5s – 32s | |
| Units – Pressure | Pa | “wg |
| Units – Flow | l/s m³/h m³/s | cfm |
| Units – Velocity | m/s | ft/min |
| Flow / Velocity Format | Actual or STD Conditions | |
| BP32 | ||
| Barometer Range | 600 – 1100 hPa | |
| Barometer Accuracy | 600 – 1100 hPa | |
| BP32 / TH60 | ||
| Temperature Range | 0 – 60°C | |
| Temperature Accuracy | ±0.3°C | |
| Temperature Response | 2s | |
| Humidity Range | 5 – 95%RH°C | |
| Humidity Accuracy | ±3%RH (10% – 90% RH) | |
| Humidity Response | 8s | |
| Dew Point Accuracy | ±0.5% Calculated | |
| General | ||
| Power | +9V Battery / +5V USB | |
| Battery Life | 50+ Hours | |
| Battery Level Indicator | Yes | |
| Data Logging – DP02/10 | 300 Logs / 98 Points | |
| Data Logging – BP32 | 300 Logs / 32 Points | |
| Data Logging – TH60 | 300 Logs / 49 Points | |
| Serial Data Ouptut | Yes | |
| Length | 173mm | |
| Width | 80mm | |
– HVAC commissioning
– Testing & balancing
– Pitot Tube duct traverse
– Static pressure monitoring
– Filters, coils, fans & diffuser performance monitoring
