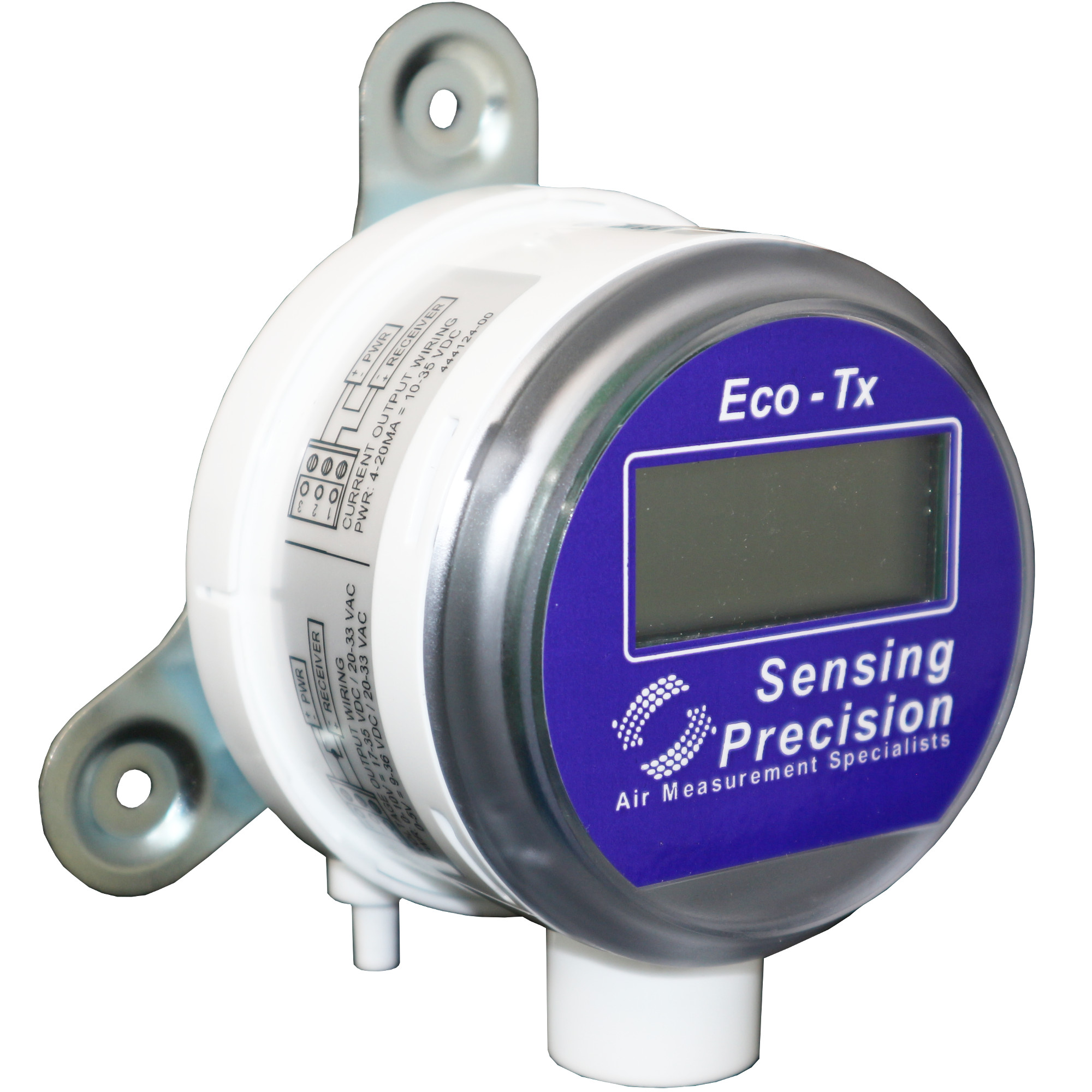

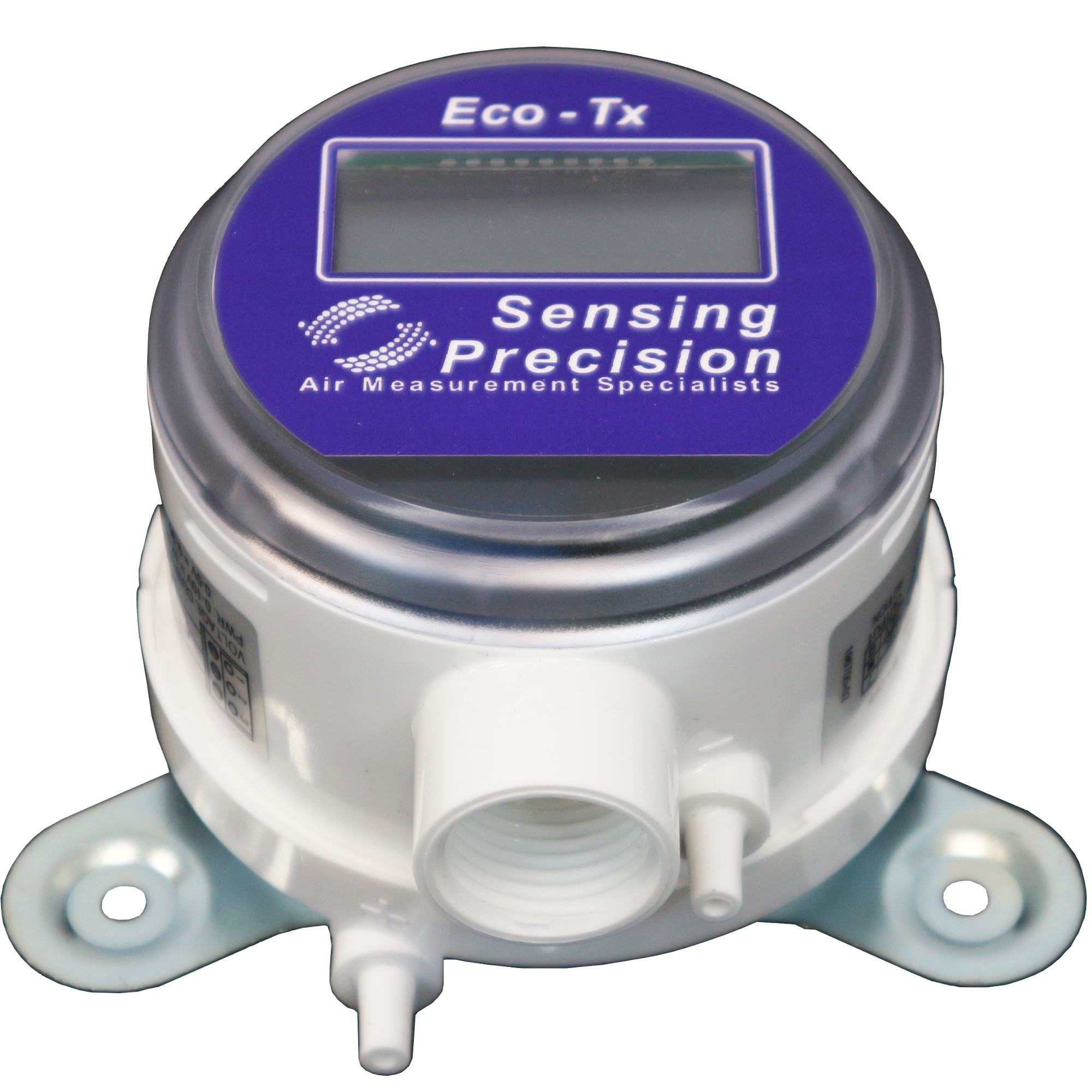

Eco-Tx Pressure Transmitter
The Differential Eco-Tx Pressure Transmitter is ideal for the monitoring and management of ventilation systems and is the perfect compliment to the highly accurate Eco-Radial Flowgrid or X-Grid range. Each Eco-Tx can be supplied fully calibrated, and setup to measure pressure, velocity or flow, at your desired operation set point or can be supplied ‘as is’.
The Differential Eco-Tx Pressure Transmitter is ideal for the monitoring and management of ventilation systems and is the perfect compliment to the highly accurate Eco-Radial Flowgrid or X-Grid range. Each Eco-Tx Pressure Transmitter can be supplied fully calibrated, and setup to measure pressure, velocity or flow, at your desired operation set point or can be supplied ‘as is’. The Eco-Tx uses proven and stable hall effect (Tx-M1) & silicon based (Tx-M2) sensor technology for accurate and reliable pressure sensing performance. They can be configured for either linear pressure output, linear velocity output or linear flow output, depending on the system requirements and it has dual current and voltage outputs allowing users to simultaneously take either a current or a voltage output to the building controller and have a local test circuit for verification of the output reading.
Key Features of the Eco-Tx Pressure Transmitter
Transmitter Outputs:
2 Wire 4-20mA & 3 wire 0-10 / 5V
Available Units:
Pa, In Wg, m/s, fpm, m³/h, cfm
Available Configurable Ranges:
0 to 25, 40, 50 or 125 Pa (Tx-M1)
0 to 250, 500, 750 or 1250 Pa (Tx-M2)
7 Segment 5 Number LCD Display
| Accuracy | ±1% of FS (50Pa, 100Pa 500Pa 1250Pa) |
| ±2% of FS (25Pa, 250Pa, ±25Pa, ±250Pa) | |
| Stability | ±1% / Year FSO |
| Pressure Range Tx-M1 | 0 to 25, 40, 50 or 125 Pa |
| Pressure Range Tx-M2 | 0 to 250, 500, 750 or 1250 Pa |
| Temperature Limits | -18 to 66 °C (0 to 150°F) |
| Pressure Limits | 1 psi MAX (Operation). 10 psi (BURST) |
| Output Signals | 4 to 20mA (2-Wire) |
| 0 to 10VDC / 5VDC (3-Wire) | Response Time | Averaging 0 to 240 Sec |
| 2.5Hz Sample Rate | |
| Loop Resistance (Current Output) | 0 to 1250Ω Max |
| Loop Resistance (Voltage Output) | 1KΩ Minimum |
| Voltage | 0 to 35VDC orIsolated 21.6 to 33 VAC (3-Wire) |
| Current Consumption | 40mA Max |
| Weight | 230g |
| Enclosure Rating | IP66 |
– BMS monitoring
– BMS control systems
