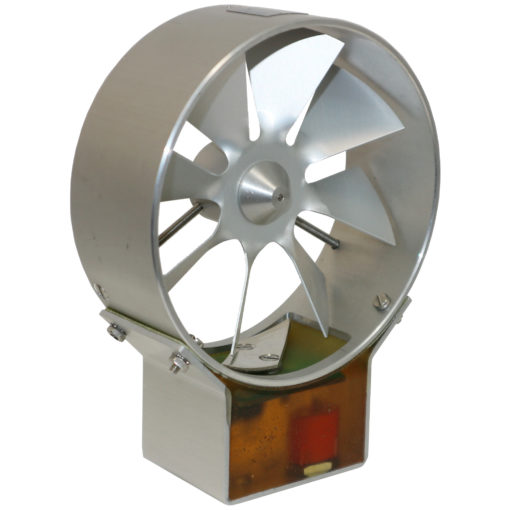

HD Vane Head Anemometer

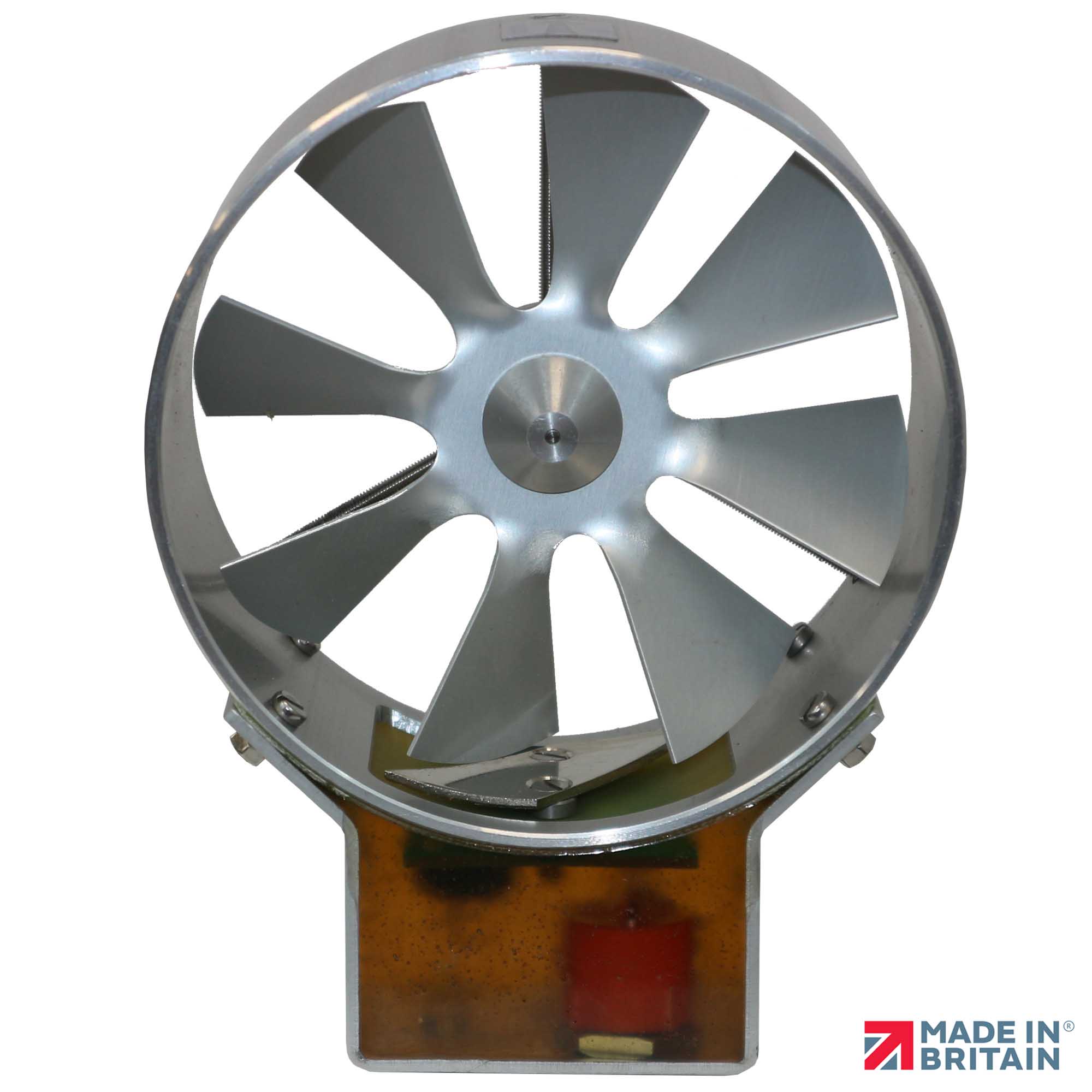

This HD Vane Head Anemometer is our most robust version of the highly successful, 100mm diameter, rotating vane head anemometer. It is supplied with fully potted high-temperature electronics and housed in an aluminum enclosure.
This HD Vane Head Anemometer is our most robust version of the highly successful, 100mm diameter, rotating vane head anemometer. It is supplied with fully potted high-temperature electronics and housed in an aluminum enclosure. Each vane head is supplied calibrated with a certificate charting its’ output in frequency (Hz) versus True Velocity (m/s).

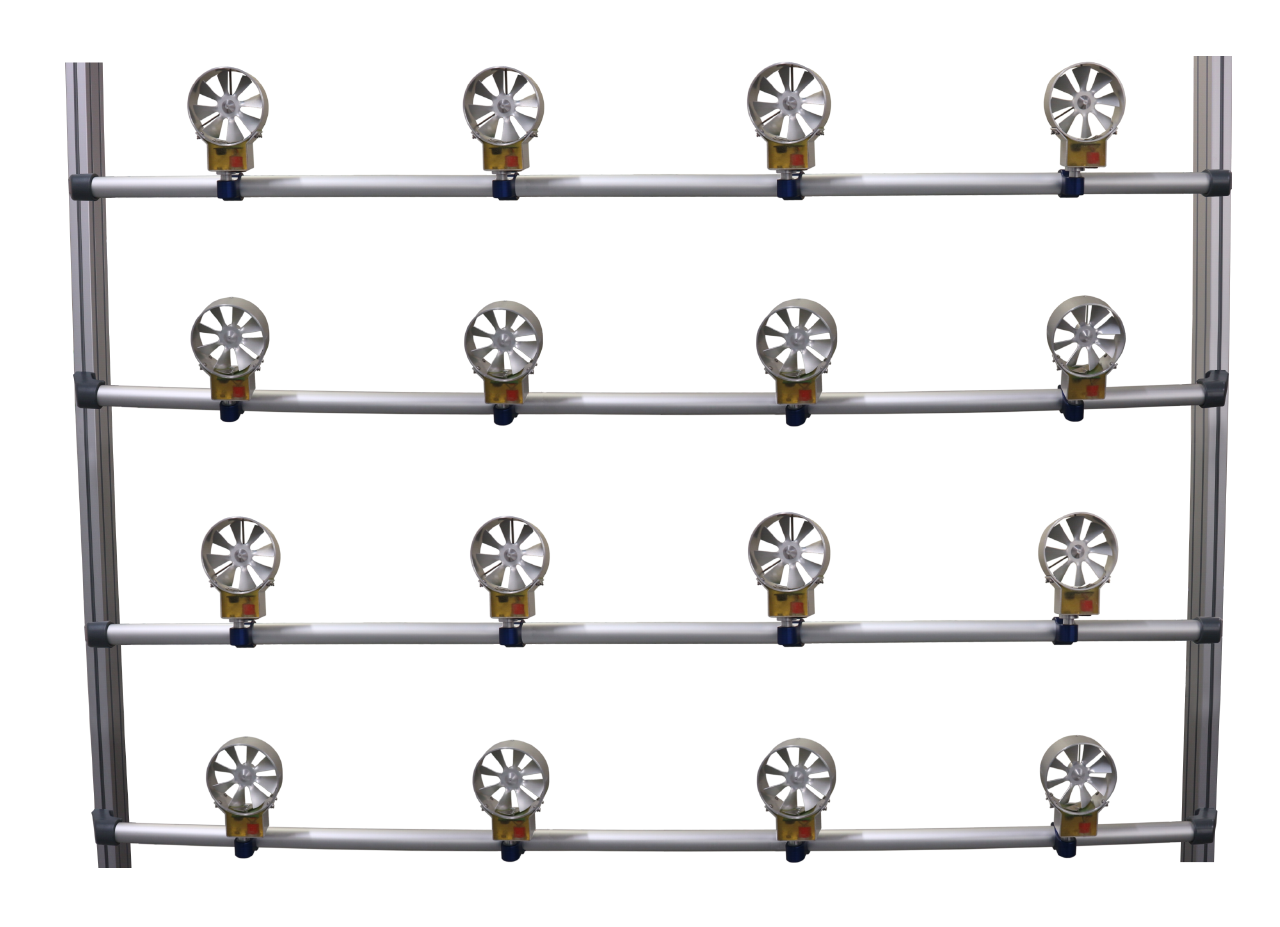

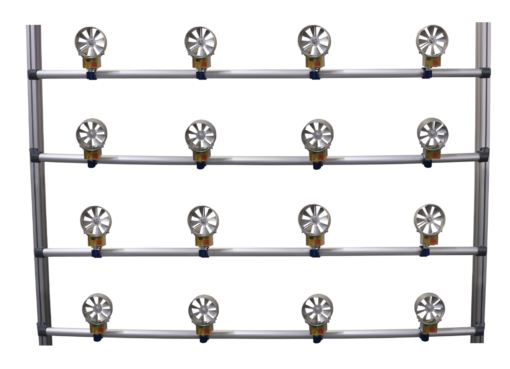

Multi-Vane Head Array System
The HD Vane Head Anemometer can be supplied as an Array system, custom built to match customer requirements. The number of units in each array will depend on coverage required and standard followed, and allowable uncertainty of measurement required if converting to volume flow. Arrays of 16/25/36 are not uncommon for large cross sections. Some customers also boom mount them for a slow sweep across a room/tunnel.

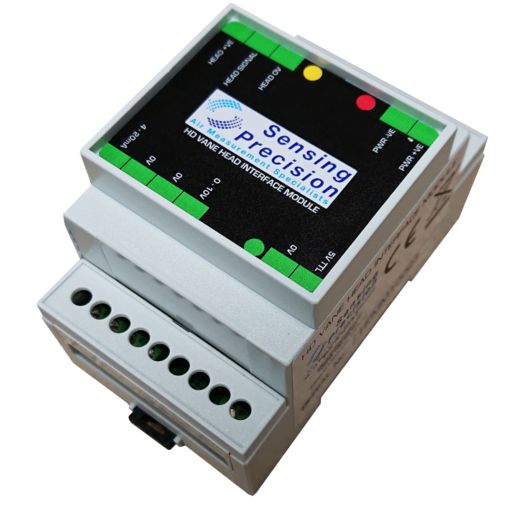

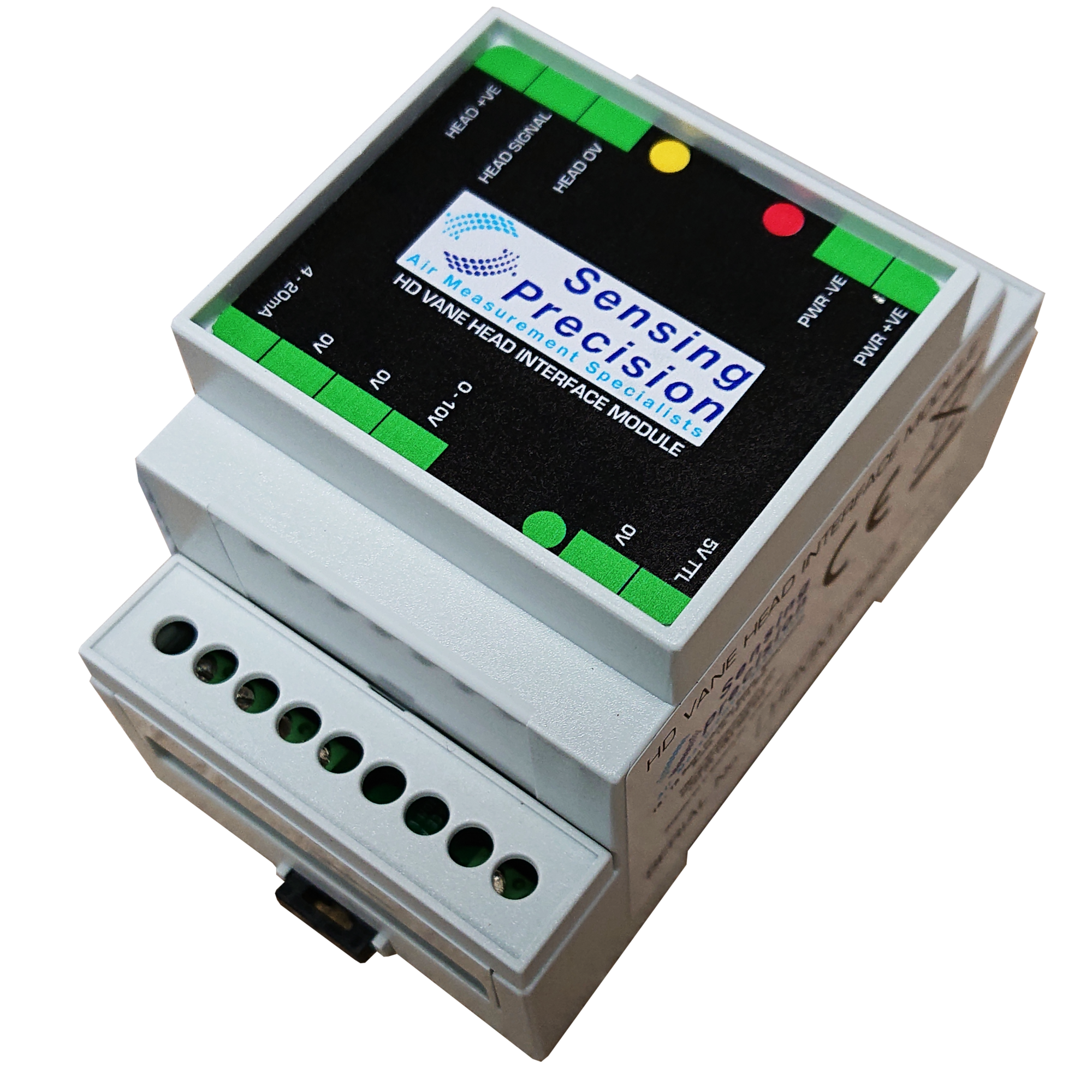

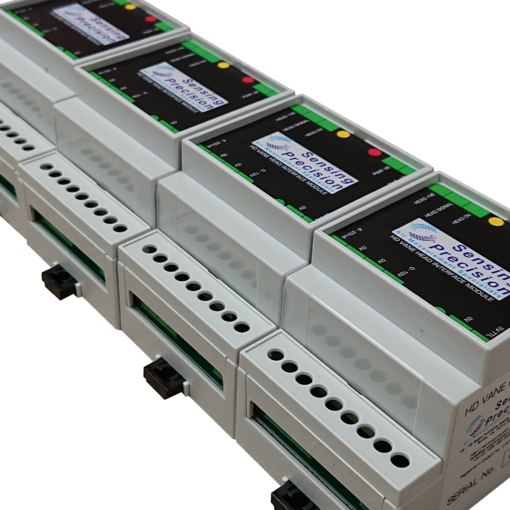

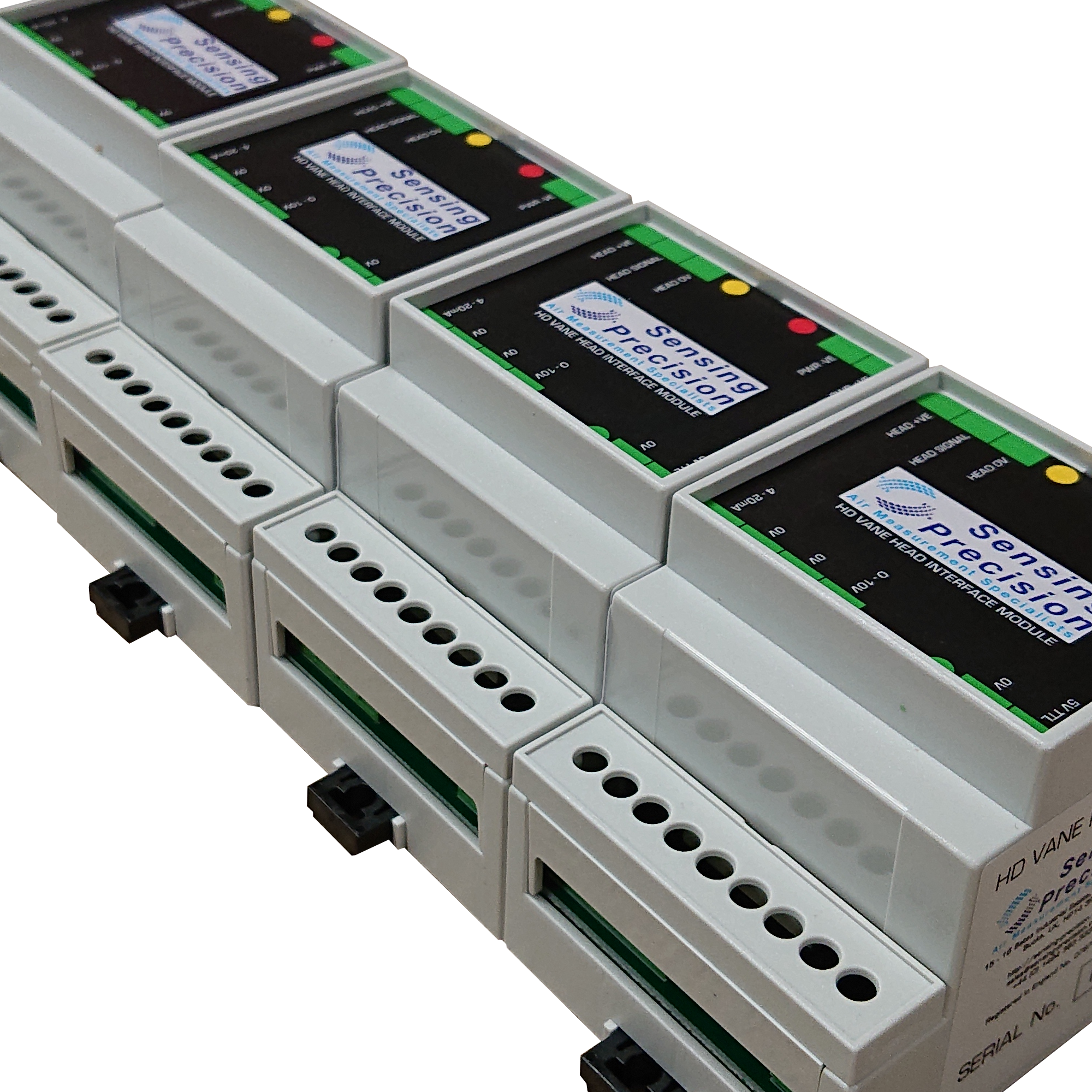

Single Channel Vane Head Interface Module
We recently introduced the Single Channel Vane Interface Module (VIM). The VIM is a DIN rail mountable unit which provides 3 proportional industry standard outputs. (4-20mA, 0-10V 0-5V TTL). Each VIM is calibrated to a paired HD Vane Head so that the output from the VIM is proportional to the paired Vane Head Output Signal.
Key Features of the HD Vane Anemometer
– 100mm Dia’ Rotating Vane
– Range of 0.5m/s to 30m/s
– Overall Dia’ of Ø106mm & Depth of 42mm
– Robust & highly successful design
– Linear Hz pulse output proportional to velocity
– Set calibration points to suit requirements
– M10 threaded attachment bush
– Range of input plugs & leads
Key Features of our Multi – Head Array Systems
– Customizable system to meet customer specification
– Multi-Head averaging module (4-20mA linear output to averaged velocity)
– 110Vac & 230Vac Supply
– Signal conditioning modules ( 4-20mA / 0-1V output proportional to velocity)
– Can be boom mounted
Features & Benefits of the Single Channel VIM
– Single 24V DC or 24V AC supply per module & Vane Head
– 3 proportional outputs
– 4-20mA, 0-10V, & 0-5V TTL frequency (Hz)
– Calibrated to your velocity range (max velocity of 35m/s)
– Simple plug & go setup
– DIN rail compatible enclosure
| Specification | |
|---|---|
| Velocity Range | 0.5 – 30 m/s |
| Uncertainty of Measurement | ±1% of reading +1 digit* @ 25°C |
| Operating Temperature | -20°C – 100°C |
| Storage Temperature | -20°C – 50°C |
| Weight | 350g |
| Dimensions | 145(h) x 42(d) x 42(w) |
| Power Supply | 5 – 15 Vdc |
| Output Signal | Signal is conveyed as a DC offset on carrier waveform, simply decoded to a square wave proportional to velocity. |
| Nominal Values | 11.7 Hz @ 0.5m/s & 435Hz @ 15m/s |
| Freq. Velocity Characteristic | Linear |
| Mounting Thread Size | M10 |
– Air velocity measurement
