Jointed Pitot Tubes
Jointed Pitot Tubes are designed for use on larger sized ducts of up to 4.3m. They are used for the purpose of sensing air flow, much like the S-Type and L-Type pitot tubes, with the main difference being that jointed pitot tubes are assembled out of two or three pieces.

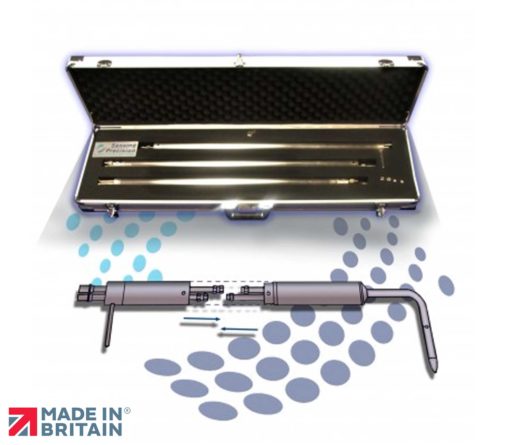

Jointed Pitot Tubes are designed for use on larger sized ducts of up to 4.3m. These larger Pitots are manufactured and supplied in a jointed form consisting generally of 2 to 3 parts, a head section, middle section and tail section and are easily connected and made air tight using the two inner tubes and the special countersunk screws used to secure the assembly.
Smaller sized Jointed Pitot Tubes can be provided in an optional protective carry case.
– Robust and easy to use construction
– Compact design allows for easy storage and transportation
– Complete with carry case
– Supplied with a 90° 9.5mm diameter head or S-TYPE cast head with 32mm diameter body, in lengths to suit customers’ requirements
For specifications, see correlating datasheet of Pitot Type.
– Velocity measurement
– Static pressure measurement
– Volume flow measurement
